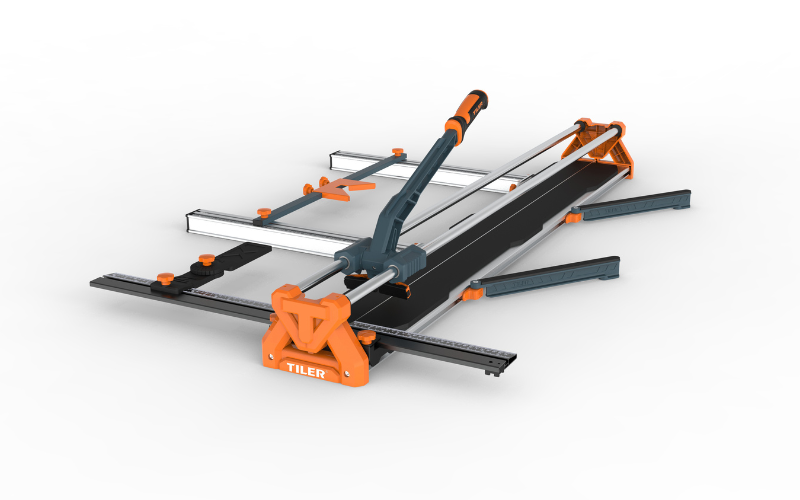

TILER 8106T-2-DJ Manual Tile Cutter Designed for Professionals High-Precision | OEM/ODM Manufacturing & Wholesale Distribution Services

Categories	Manual Tile Cutters
Brand	TILER tile cutting and laying tools distrubutor
Model	8106T-2-DJ
Material	Aluminum alloy
Cutting lengths	600mm, 800mm, 900mm,1000mm, 1200mm
Cutting thickness	4mm to 18mm
Separator power	1000kgs
Accuracy	within 1.0mm
Blade material	Tungsten carbide
Gauge	Aluminum
Download
Update Time	Sep 23,2025

Contact Now

Favorites

Detail Information

◢ SPECIFICATION

ART.	MAX. CUTTING LENGTH (mm)	MAX. DIAGONAL CUTTING LENGTH （mm)	CUTTING THICKNESS (mm)	BREAKING POWER (kg)	WHEEL SIZE (mm)	QTY/CTN	WEIGHT (kg)	L x W x H (cm)	LASER (Y/N)
8106T-2-DJ-600	600	425mm	4-18	1000	2266	2	25	9247.527.5	N
8106T-2-DJ-800	800	565	4-18	1000	2266	2	27	12247.527.5	N
8106T-2-DJ-900	900	635	4-18	1000	2266	1	16.5	1202325cm	N
8106T-2-DJ-1000	1000	705	4-18	1000	2266	1	17	1302325cm	N
8106T-2-DJ-1200	1200	860	4-18	1000	2266	1	18	1502325cm	N

◢DESCRIPTION

TILER 8106T-2-DJ Manual Tile Cutter Designed for Professionals High-Precision | OEM/ODM Manufacturing & Wholesale Distribution Services

Precision Cutting System: Features 20mm chrome-plated steel guides and a premium bearing sliding system for smooth, accurate, and straight cuts every time.

Versatile Cutting Angles: Equipped with an 80cm aluminum ruler, facilitating easy and precise repetitive cuts as well as 45-degree angle cuts.

Sturdy and Stable Construction: Built with an aluminum base and a rigid support frame, enhanced by a movable rail support bar for increased stability during operation.

Durable Chrome-Plated Components: Incorporates robust 20mm chrome-plated steel guide rails, ensuring long-lasting durability and resistance to wear.

Multiple Size Options: Available in various model sizes to handle different tile dimensions, providing flexibility for a range of project requirements.

◢ MODELS FOR 8106T-2-DJ

▪ 8106T-2-DJ-600 ▪

Types: straight cut, diagonal cut

Accuracy: within 1.0mm

Minimum tile thickness:4mm

Maximum tile thickness:18mm

Base material: aluminum alloy

Guide rail material: alloy steel

Guide rail diameter: 20mm

Cutting roller (cutter):22mm

▪ 8106T-2-DJ-1000 ▪

Types: straight cut, diagonal cut

Accuracy: within 1.0mm

Minimum tile thickness:4mm

Maximum tile thickness:18mm

Base material: aluminum alloy

Guide rail material: alloy steel

Guide rail diameter: 20mm

Cutting roller (cutter):22mm

▪ 8106T-2-DJ-800 ▪

Types: straight cut, diagonal cut

Accuracy: within 1.0mm

Minimum tile thickness:4mm

Maximum tile thickness:18mm

Base material: aluminum alloy

Guide rail material: alloy steel

Guide rail diameter: 20mm

Cutting roller (cutter):22mm

▪ 8106T-2-DJ-1200 ▪

Types: straight cut, diagonal cut

Accuracy: within 1.0mm

Minimum tile thickness:4mm

Maximum tile thickness:18mm

Base material: aluminum alloy

Guide rail material: alloy steel

Guide rail diameter: 20mm

Cutting roller (cutter):22mm

▪ 8106T-2-DJ-900 ▪

Types: straight cut, diagonal cut

Accuracy: within 1.0mm

Minimum tile thickness:4mm

Maximum tile thickness:18mm

Base material: aluminum alloy

Guide rail material: alloy steel

Guide rail diameter: 20mm

Cutting roller (cutter):22mm

◢FAQ

What makes this tile cutter provide accurate, straight cuts?

Our cutter is engineered for precision. It combines a premium bearing sliding system with 20mm thick chrome-plated steel guide rails. This robust construction ensures the cutting head moves smoothly without wobbling, guaranteeing perfectly straight cuts every time.

Can this cutter make 45-degree angle cuts for corners?

Yes, absolutely. The tool comes with a dedicated 80cm aluminum ruler that is specifically designed to easily guide and execute precise 45-degree angle cuts, making it ideal for tiling corners and edges.

How stable is the cutter during use, especially with larger tiles?

Stability is a key feature. The aluminum base and rigid support frame provide a solid foundation. Additionally, the movable rail support bar can be adjusted to offer extra support right under the tile, preventing flex and ensuring stability even with large-format tiles.

Is this machine durable enough for professional, daily use?

Yes, it is built for professional demands. The critical components, like the 20mm chrome-plated steel guides, are designed to resist wear and tear from daily use, ensuring long-term durability and reliability on the job site.

What size of tiles can this model handle?

The 8106T-2-DJ is available in multiple sizes to suit different projects. Please check the model specifications (e.g., M00 variants) for the maximum cutting length and depth each version supports to match your tile dimensions.

What components are included to get started with basic cutting operations?

The package includes all essential components for immediate use. This encompasses the main cutter unit with the integrated aluminum ruler, the movable rail support bar for stability, and the cutting head assembly with the scoring wheel. For a definitive, itemized list of all included parts and quantities, we recommend consulting the packing list included with your shipment or the product manual.
