Large Format Slab Handling System with Vacuum Suction Cups DB-CY-2 |Efficient Slab Handling Solution

Large Format Slab Handling System with Vacuum Suction Cups DB-CY-2 |Efficient Slab Handling Solution

Large Format Slab Handling System with Vacuum Suction Cups DB-CY-2 |Efficient Slab Handling Solution
Large Format Slab Handling System with Vacuum Suction Cups DB-CY-2 |Efficient Slab Handling SolutionLarge Format Slab Handling System with Vacuum Suction Cups DB-CY-2 |Efficient Slab Handling SolutionLarge Format Slab Handling System with Vacuum Suction Cups DB-CY-2 |Efficient Slab Handling Solution
CategoriesLarge Format Slab Handing System
BrandTILER tile cutting and laying tools distrubutor
ModelDB-CY-2
MaterialPremium aluminum alloy
Suction cup typeHeavy duty vacuum suction cup 8 inch
Number of suction cup6
Maximum load capacity140kgs
ApplicationFor handling large format slabs
Download DOCpdf icon
Update TimeApr 23,2024
Detail Information
◢ SPECIFICATION
ART
QTY/INNER BOX
QTY/OUTER BOX
DB-CY-2
/
1PC
◢ DESCRIPTION
TILER Large Format Slab Handing System with Vacuum Suction cups DB-CY-2 Manufacturer in China, recruit dealers

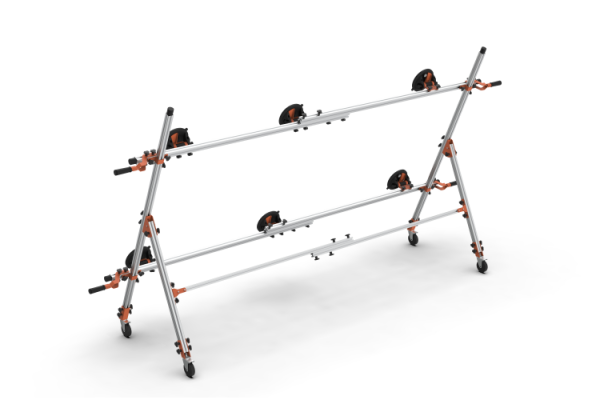

  • The large format slab handing system is specially designed for handling large format slabs up to 360 cm in length.

  • Reinforced aluminum profile. Greater structural strength.

  • The set consists of two retractable and adjustable extruded aluminum guides, ranging from 160 to 360 cm.

  • The system is equipped with 6 heavy-duty vacuum suction cups that securely fix the system in place. These suction cups are easily positionable and allow for adjustable fixing points, ensuring the safe handling of large format sheets.

  • Handle kit makes lifting the slab even more comfortable.

  • The crossbars can be easily released for transporting long narrow slabs.

  • Maximum load capacity: 140 kg.

◢FAQ
What is the maximum length of slabs that the TILER Large Format Slab Handling System DB-CY-2 can handle?
The TILER Large Format Slab Handling System DB-CY-2 is designed to handle large format slabs up to 360 cm (3.6 meters) in length.
What is the material used for the structure of the TILER Large Format Slab Handling System DB-CY-2?
The TILER Large Format Slab Handling System DB-CY-2 features a reinforced aluminum profile, providing greater structural strength.
 How many retractable and adjustable aluminum guides are included in the TILER Large Format Slab Handling System DB-CY-2?
The TILER Large Format Slab Handling System DB-CY-2 includes two retractable and adjustable extruded aluminum guides that can range from 160 cm to 360 cm in length.
How many vacuum suction cups are included in the TILER Large Format Slab Handling System DB-CY-2?
The TILER Large Format Slab Handling System DB-CY-2 is equipped with 6 heavy-duty vacuum suction cups that securely fix the system in place. These suction cups are easily positionable and allow for adjustable fixing points to ensure the safe handling of large format sheets.
Can the crossbars be released for transporting long narrow slabs?
Yes, the crossbars of the TILER Large Format Slab Handling System DB-CY-2 can be easily released to accommodate the transportation of long narrow slabs.
What is the maximum load capacity of the TILER Large Format Slab Handling System DB-CY-2?
The TILER Large Format Slab Handling System DB-CY-2 has a maximum load capacity of 140 kg, ensuring it can handle heavy slabs with ease.
