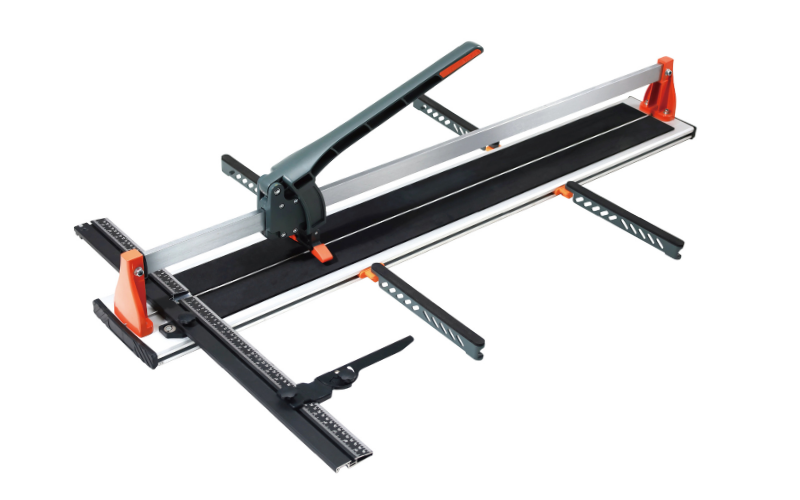

TILER 8102G-2A-DJH Manual Porcelain Ceramic Tile Cutter | Accurate and Easy Cutting |for porcelain tile cut

TILER 8102G-2A-DJH Manual Porcelain Ceramic Tile Cutter | Accurate and Easy Cutting |for porcelain tile cut

TILER 8102G-2A-DJH Manual Porcelain Ceramic Tile Cutter | Accurate and Easy Cutting |for porcelain tile cut
TILER 8102G-2A-DJH Manual Porcelain Ceramic Tile Cutter | Accurate and Easy Cutting |for porcelain tile cutTILER 8102G-2A-DJH Manual Porcelain Ceramic Tile Cutter | Accurate and Easy Cutting |for porcelain tile cutTILER 8102G-2A-DJH Manual Porcelain Ceramic Tile Cutter | Accurate and Easy Cutting |for porcelain tile cutTILER 8102G-2A-DJH Manual Porcelain Ceramic Tile Cutter | Accurate and Easy Cutting |for porcelain tile cut
CategoriesManual Tile Cutters
BrandTILER tile cutting and laying tools distrubutor
Model8102G-2A-DJH
MaterialAluminum
Cutting Wheel MaterialTungsten Carbide
Cutting Length900mm/1200mm/1550mm
Cutting Thicknes4mm to 16mm
Cutting AccuracyWithin 1.0mm
Maximum Breaking Power1000kgs
Angle Cutting Range0° to 60°
Cutting Gauge Length80cm
Grip MaterialTPR
Download DOCpdf icon
Update TimeApr 23,2024
Detail Information
◢ SPECIFICATION
ART.
MAX.CUTTING LENGTH
(mm)
MAX.DIAGONAL CUTTING LENGTH(mm)
CUTTING
THICKNESS
(mm)
BREAKING
POWER
(kg)
SIZE OF CUTTING WHEEL
(mm)
QTY/CTN
WEIGHT
(kg)
    LxWxH
(cm)
8102G-2A-DJH-900
900
635
4-16
1000
22*6*6
2
20
116*25*26
8102G-2A-DJH-1200
1200
850
4-16
1000
22*6*6
1
14
146*25*26
8102G-2A-DJH-1550
1550
1095
4-16
1000
22*6*6
1
18
181*25*26
 DESCRIPTION

TILER 8102G-2A-DJH Manual Porcelain Ceramic Tile Cutter | Accurate and Easy Cutting |for porcelain tile cut, 10 Ball Bearing inside, for Precision Cutting Porcelain Ceramic Floor Tiles Manufacturer Wholeasale【 900mm|36inch;1200mm|48inch;1550mm|62inch】

▪ Manual Tile Cutter 8102G-2A-DJH Aluminum Base, its double-layer integrated aluminum base and strong die-casting aluminum support parts offer rigidity, stability, and precision, while still being lightweight and easy to transport. The machine is designed to be user-friendly, with a human-engineering big handle and comfortable TPR grip.
▪ The machine features a high-performance breaking device with a maximum power of 1000kgs, which can be locked and auto-released to provide a direct vision of the scoring and cutting line. This ensures that the tiles are cut accurately and efficiently, with a tolerance of within 1.0mm.
▪ Manual Tile Cutter 8102G-2A-DJH can cut a variety of tile thicknesses, ranging from 4mm to 16mm, and can make both straight cuts and angle cuts up to 60°. It also comes with an 80cm aluminum die-casting gauge with laser marking for precise cutting. The cutting blade is simple and convenient to replace and can last for approximately 2000 meters of cutting under normal conditions.
▪ Overall, Manual Tile Cutter 8102G-2A-DJH is highly effective for cutting various types of tiles, including heavy-duty porcelain tiles, and can save professional installers time and effort in their work.

▪ Manual Tile Cutter 8102G-2A-DJH Aluminum Base  ▪
Upgrade your tiling game with the 8102G-2A-DJH Aluminum Base Manual Tile Cutter. Lightweight yet precise, it features an aluminum base and die-casting aluminum support parts for stability and accuracy. With its high-performance breaking device and tolerance of within 1.0mm, it's perfect for cutting a variety of tile thicknesses and making both straight and angled cuts up to 60°.
➣ Order now and stay ahead of the competition!
 MODELS FOR 8102G-2A-DJH
 8102G-2A-DJH-900

Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material:aluminum
Guide rail material:alloy steel
Guide rail section size:40*12mm
Cutting roller (cutter):22mm
▪ 8102G-2A-DJH-1200 ▪

Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material:aluminum
Guide rail material:alloy steel
Guide rail section size:40*12mm
Cutting roller (cutter):22mm
 8102G-2A-DJH-1550

Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material:aluminum
Guide rail material:alloy steel
Guide rail section size:40*12mm
Cutting roller (cutter):22mm
